Two lasers are placed as shown in the figure. Drag and drop the lenses in the highlighted region and observe the effect on the path of light rays.

Convex  

Concave  

Next

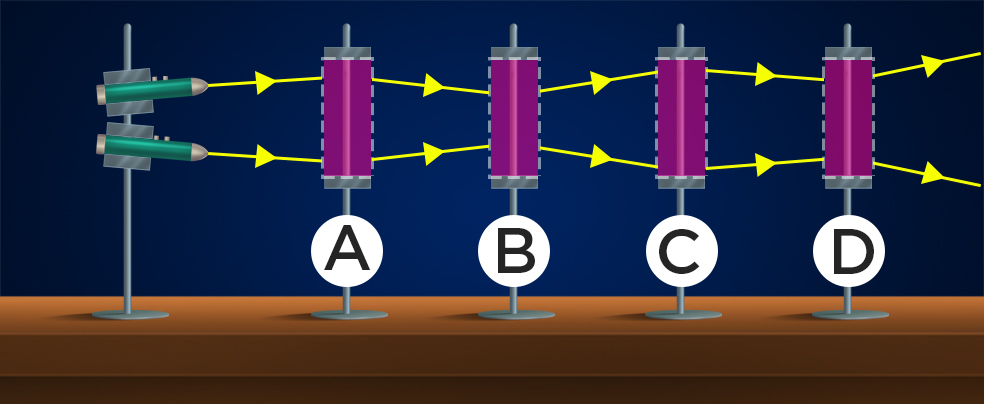

Identify the type of lens present in the box based on the path of the light rays.
More than one options can be correct

A: Convex, B: Concave, C: Convex

B: Convex, C: Concave, D: Convex

A: Convex, C: Convex, D: Concave

C:Convex, D:Concave

Submit

Solution

We know that convex lens converges light and concave lens diverges light. In this figure, through A light is convering thus, A: convex lens, through B light is diverging thus, B: concave lens, through C light is again converging thus, C: convex lens and through D light is diverging thus, D: concave lens.

You just explored that light rays are converged by a convex lens and diverged by a concave lens.
